High load-bearing capacity, dimensionally stable and lightweight.

Glulam MM masterline, the right solution for every building project.


#mm #mmholz #mayrmelnhofholz #glulam #gluelaminatedtimber #MMmasterline #whereideascangrow

MM masterline is the international quality brand for glulam beams from the Mayr-Melnhof Holz Group. Engineered from individually strength-graded lamellas, planed &  parallel-glued, these glulam elements offer a competitively priced solution to applications where high load-bearing capacity, outstanding dimensional stability, as well as design versatility are needed. The possibility to combine high-quality straight, curved, or customized load-bearing components allows architects virtually unlimited freedom of design. Mayr-Melnhof Holz offers a full range of glulam products from standard stock goods through to complicated special components.

MM masterline glulam beams, like all the products in our range of engineered timber, are produced under strict quality control and are PEFC certified. As a natural and renewable building material that stores CO2, the use of MM Masterline makes an important contribution to active climate protection.

BROCHURES
WOOD - BUILDING MATERIAL OF THE FUTURE
SUSTAINABILITY & USE OF RAW MATERIALS

Mayr-Melnhof Holz also acts as a supplier of services as well as products. Find out more about our full range of services for timber engineering and A to Z timber construction solutions: MM complete by Hüttemann.

MM masterline: Areas of application
  • Single and multi-family houses
  • Commercial, office and industrial buildings
  • Warehouses and exhibition halls
  • Municipal buildings, such as kindergartens, schools and nursing homes
  • Buildings for tourism, such as hotel and restaurant buildings
  • Buildings for recreation, such as sports halls, swimming pools
  • Churches and religious buildings
  • Specialist bridging structures
MM masterline: Beams systems

Parallel beams/single spans
Test Alternative Text

Ribbed and box elements

Finger-jointed connections

Parallel beams/multi-span
Lattice trusses
Three-jointed systems
with fingerjointed frame corners
Parallel beams with structural camber
Curved beams
Three-jointed systems
with curved frame corners

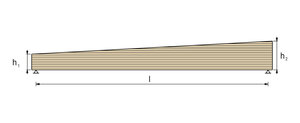

Tapered beams / Pent roof beams
Gable roof beams with curved lower boom
Straight beams
with external post-tensioning
Gable roof beams
with straight lower boom
Fish belly beams
Curved beams
with external post-tensioning
Block-bonding
Freel shapes

d = lamination thickness
l = Span
h = Height
b = Width
Ü = Camber
*recommended roof inclination

MM masterline: Applications
  • Walls
  • Ceilings
  • Roof structures
  • Roof trusses
  • Beams
  • Supports
MM masterline: Technical specifications
Wood species Spruce (Picea Abies), Larch (Larix)
Strength class             GL24 – GL28 – GL30 homogeneous or combined, GL32 on request
Surface 4 sides planed and chamfered
Moisture content 12 % (± 2 %)
Density approx. 430 kg/m³ (spruce) or according to strength class  – see product standard
Gluing MUF, EN 301-I-90-GP-0,3-S (Melamine resin glue, light-coloured glue joint, waterproof)
Fire class D-s2, d0
Service class SC 1+2, SC 3 on request
Product standard EN 14080:2013

Quality visual (SI), industrial (NSI)
Width 6 cm - 28 cm (Bearing cross sections up to 20 cm)
Height 10 cm - 220 cm (Reuthe: up to 200 cm, Gaishorn: up to 208 cm)
Length 4 m - 32 m (Bearing length up to 23 m)
Shapes
  • straight
  • tapered
  • cylindrical
  • curved
Mayr-Melnhof Holz: Logistics services

Road

  • Long-standing stable business relationships with a large number of logistics service providers in Europe.
  • We use digital platforms for fast communication with our transport service providers.


Sea

  • Loading into shipping containers is possible at all sites.
  • With trusted logistics partnerss we are able to offer fast and reliable container shipments worldwide.
  • Subject inducement we can offer breakbulk shipments from the Adriatic, Baltic and North Seas.
  • With our own port terminal in Koper, Slovenia, we have regular chartered services to southern Mediterranean ports & beyond.


Rail

  • All Mayr-Melnhof Holz sawmills in Leoben (AT), Paskov (CZ) and Efimovskij (RU) as well as our timber processing plants in Gaishorn (AT) & Wismar (DE) are directly connected to national railway networks.
  • We use both private & public rail service providers to transport goods in an environmentally friendly manner.


Delivery to construction sites

  • Just-in-time deliveries to our cross-laminated and glulam construction sites.
  • A full range of modern transport solutions is offered as necessary:
    • all-wheel drive trucks
    • narrow-access self-steering trailers
    • hydraulically steered trailers
    • solo vehicles with up to 10 m loading length for inner-city areas
    • covered loads up to 3,5 m wide
    • loads up to 52 m length
    • trailers with on-board forklifts
    • Edscha sliding roof trailers for vertical access


Documentation
Together with our logistics partners we will provide you with professional documentation to enable you to cover all your export, import, and customs formalities without problems.

Downloads & Certificates


Choose products from Mayr-Melnhof Holz with confidence. The raw material we use, our supply chains and our productionprocesses are subject to rigorous internal and third-party controls. Our certification and technical standards confirm our far-reaching efforts.
